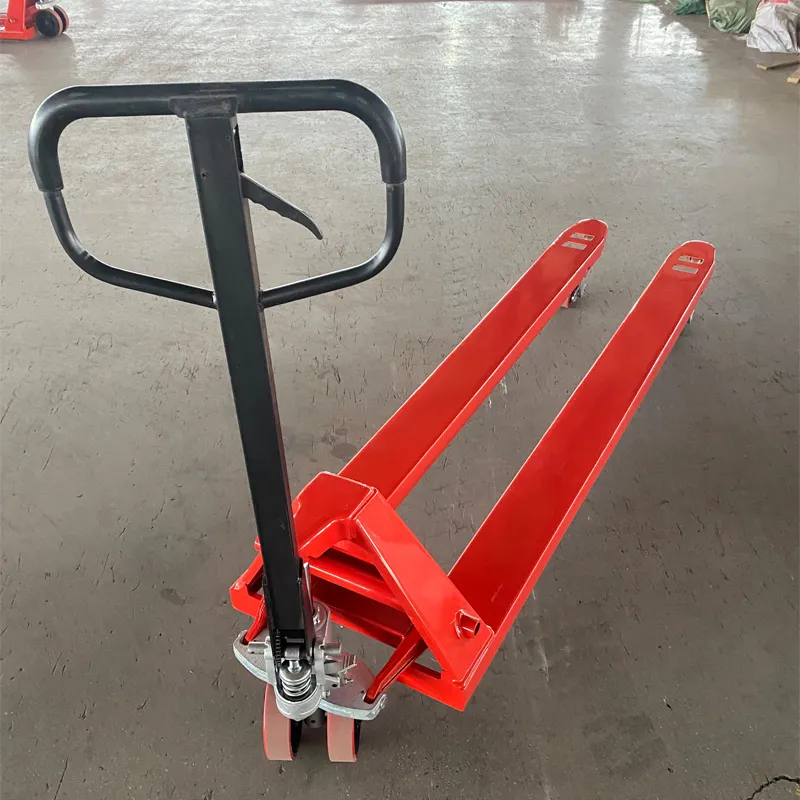

Super Long Hand Pallet Truck

The super long hand pallet truck is a customized version of the standard pallet truck. The fork length ranges from 1500mm to 2000mm. Rated loading ranges from 1.5tons to 3tons. As it’s fork is lengthened, the reality loading capacity will decrease much compared to standard length pallet truck. The lengthened pallet trucks JULI Hoisting manufactured usually use first-class materials in order to enhanced the durability. Taking into account the so long forks, big integrated pumps, thickened steel plates and reinforced forks are needed to ensure the original rated loading.

Send email to us Download as PDF

Product Detail

Product Tags

product description

The super long hand pallet trucks a wide range of applications in supermarkets, warehouses, workshop, plant, logistics, express, manufacturing, mining, construction sites... Some specific items are so long in width or length that standard pallet trucks can not hold them safe enough. So this customized pallet truck comes in handy.

main parameter

Model	CBY-L15	CBY-L18	CBY-L20
Fork length(mm)	1500	1800	2000
Max lifting height(mm)	195	195	195
Lowered fork height(mm)	85	85	85
Overall Length(mm)	1870	2170	2370
Width over the forks(mm)	550/685	550/685	550/685
Height(mm)	1240	1240	1240
Steering wheel(mm)	Φ180*50	Φ180*50	Φ180*50
Load wheel(Tandem)(mm)	Φ80*70	Φ80*70	Φ80*70
Noise lever(dB)	＜70	＜70	＜70

ADVANTAGES

1.Seamless casting integrated pump
2.First-class material to produce good quality accessories
3.Four reinforcedbars to strengthen the forks again
4.Automated production technology, the laser cutting machine, the welding robots, the polishing machine,etc.
5.Full flow production, from cutting the steel plate, to producing the accessories, to the finished assembly.
FEATURES

1) The product we produced is in compliance with CE certificate

2) The design is reasonable and labor-saving

3) The materials are sufficient amount and of good quality

4) The structure is compact and advanced.

5) The appearance is beautiful
