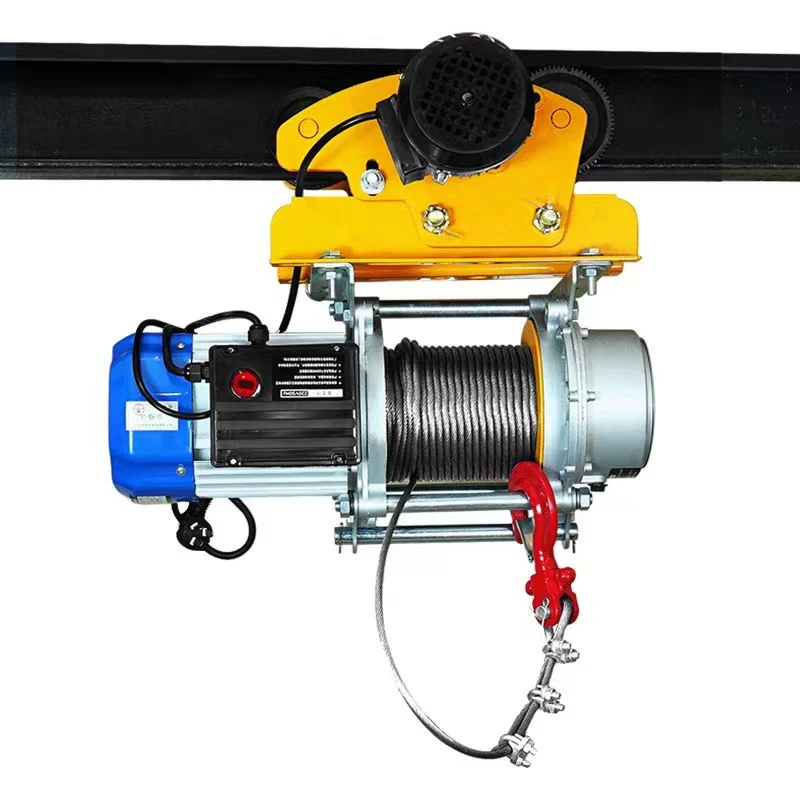

Electric Hoist Winch With Electric Trolley
parameter
| Model | Using method | Rated Voltage | Motor power KW | Rated Hoisting kg | Hoisting speed M/min | Hoisting H m |
Rope Dia mm |
| JPL-K1 500-1000 | single rope | 380V/50HZ | 1.7 | 500 | 14 | 1-100 | 6 |
| double rope | 1000 | 7 | 1-100 | 6 | |||
| JPL-K1 500-1000 | single rope | 220V/50HZ | 2.2 | 500 | 14 | 1-100 | 6 |
| double rope | 1000 | 7 | 1-100 | 6 | |||
| JPL-K1 600-1200 | single rope | 380V/50HZ | 2.2 | 600 | 14 | 1-100 | 6 |
| double rope | 1200 | 7 | 1-100 | 6 | |||
| JPL-K1 600-1200 | single rope | 220V/50HZ | 3 | 600 | 14 | 1-100 | 6 |
| double rope | 1200 | 7 | 1-100 | 6 | |||
| JPL-K1 750-1500 | single rope | 380V/50HZ | 3 | 750 | 14 | 1-100 | 7 |
| double rope | 1500 | 7 | 1-100 | 7 | |||
| JPL-K1 750-1500 | single rope | 220V/50HZ | 4 | 750 | 14 | 1-100 | 7 |
| double rope | 1500 | 7 | 1-100 | 7 |
Key Features
- Load Capacity: Available in various capacities, typically ranging from 0.5 tons to 10 tons, to handle a wide range of lifting needs.
- Lift Height: Adjustable lift heights ensure versatility and adaptability to different operational requirements.
- High Lifting Speed: Equipped with a powerful motor and high-speed gear system for swift lifting and lowering operations.
- Durable Construction: Built with high-quality materials and precision engineering for long-lasting performance and reliability.
- Smooth Operation: The electric trolley provides smooth and controlled horizontal movement along the beam or rail, minimizing manual effort and enhancing operational efficiency.
- Adjustable Width: Features adjustable trolley width to fit various beam sizes and configurations.
- Variable Speed Control: Allows for precise control over the movement speed, ensuring safe and accurate load positioning.
- Overload Protection: Integrated overload protection prevents damage to the hoist and ensures safe operation by automatically stopping the hoist if the load exceeds its rated capacity.
- Emergency Stop Button: An emergency stop button is included to quickly halt operations in case of unforeseen situations.
- Safety Limit Switches: Built-in limit switches prevent the hoist from over-traveling and causing damage or accidents.
- Ergonomic Pendant Control: Comes with an easy-to-use pendant control with clear, intuitive buttons for simple operation of both hoisting and trolley functions.
- Wireless Remote Option: Available as an option for remote operation, providing added convenience and safety by allowing operators to control the hoist and trolley from a distance.
- Low Maintenance: Designed for minimal maintenance with easily accessible parts for routine checks and servicing.
- Comprehensive Support: Backed by professional customer support and a warranty, ensuring assistance and parts availability for ongoing service and repair needs.
The Electric Hoist with Electric Trolley represents a significant advancement in lifting technology, offering a powerful and efficient solution for heavy-duty lifting and transportation tasks. With its robust design, safety features, and user-friendly controls, it is an invaluable asset for improving productivity and ensuring safe operations in various industrial applications.
