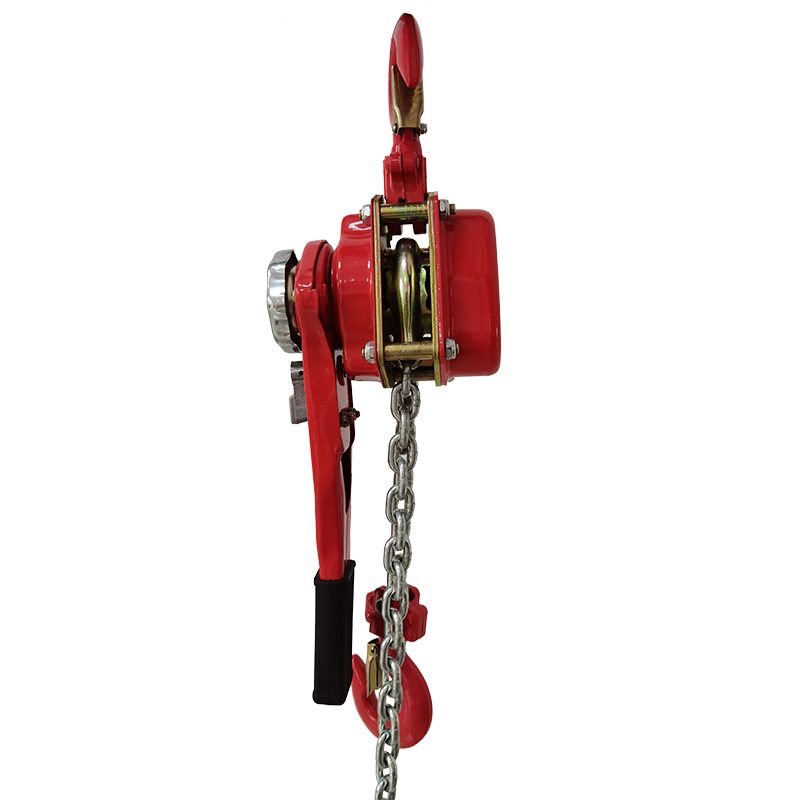

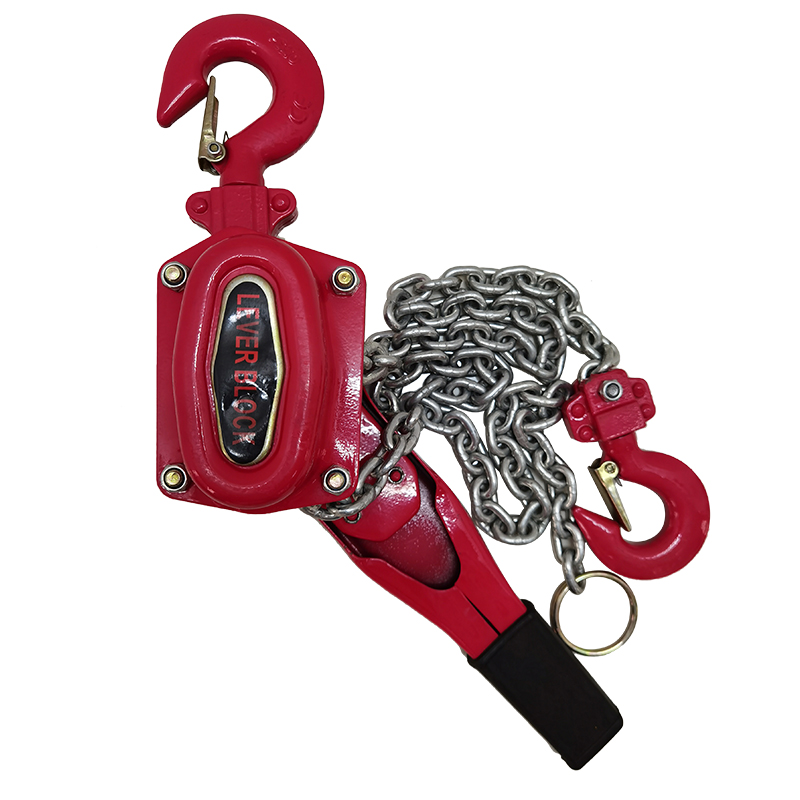

HSH Lever block
product description
The main parts of the HSH lever block are made of superior steel, which has the following characteristics in design and service:
1.safe,reliable and durable in use.
2.excellent performance and minimum maintenance.
3.small volume,light weight and portable in size.
4.light hand-pull and high efficiency.
5.advanced structure and attracting appearance.
main parameter
| Model | HSH-0.75 | HSH-1.5 | HSH-3 | HSH-6 | HSH-9 |
| Capacity(t) | 0.75 | 1.5 | 3 | 6 | 9 |
| Standard lifting height(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Tested load capacity(t) | 11.0 | 22.5 | 37.5 | 75.0 | 112.5 |
| Pulling force to lift full load(N) | 140 | 220 | 320 | 340 | 360 |
| NO. of load chain | 1 | 1 | 1 | 2 | 3 |
| Load chain diameter (mm) |
6 | 8 | 10 | 10 | 10 |
| Net weight(kg) | 7.5 | 11.5 | 21 | 31.5 | 47 |
| Packing measurement(L*W*H) (cm) |
35.5*14*16.5 | 46.5*15.5*19 | 51*19*21.5 | 53*22*21.5 | 82*32*21.5 |
| Extra weight per meter of extra lifting height(kg) |
0.8 | 1.4 | 2.2 | 4.4 | 6.6 |
product details
Alloy steel thickened integrated cover
protects the internal structure and operates stably, is durable and has a longer service life.
Integrated through-type central long axis
Integrated forged, no welding, wear-resistant and high hardness
G80 manganese steel chain
high strength, 4 times the breaking force
Stainless steel quenched gear set:
high hardness and wear resistance; precise meshing between gears, efficient transmission, meeting long-term workload
Ratchet double brake system
double pawl brake system, effective emergency braking and safer
Anti-slip rubberized handle
rubber synthetic, ergonomic design, comfortable and anti-slip
