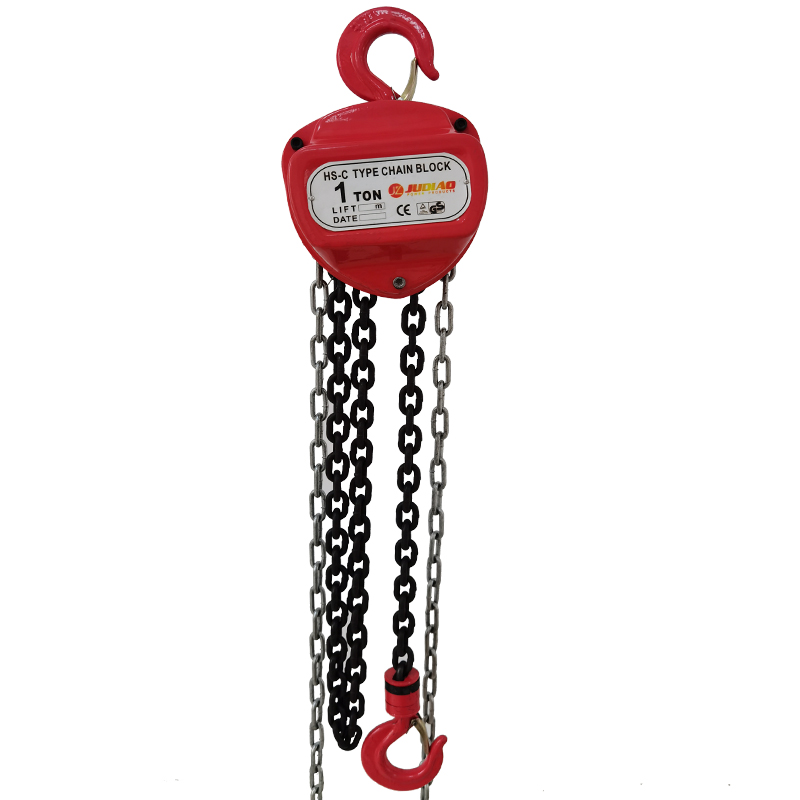

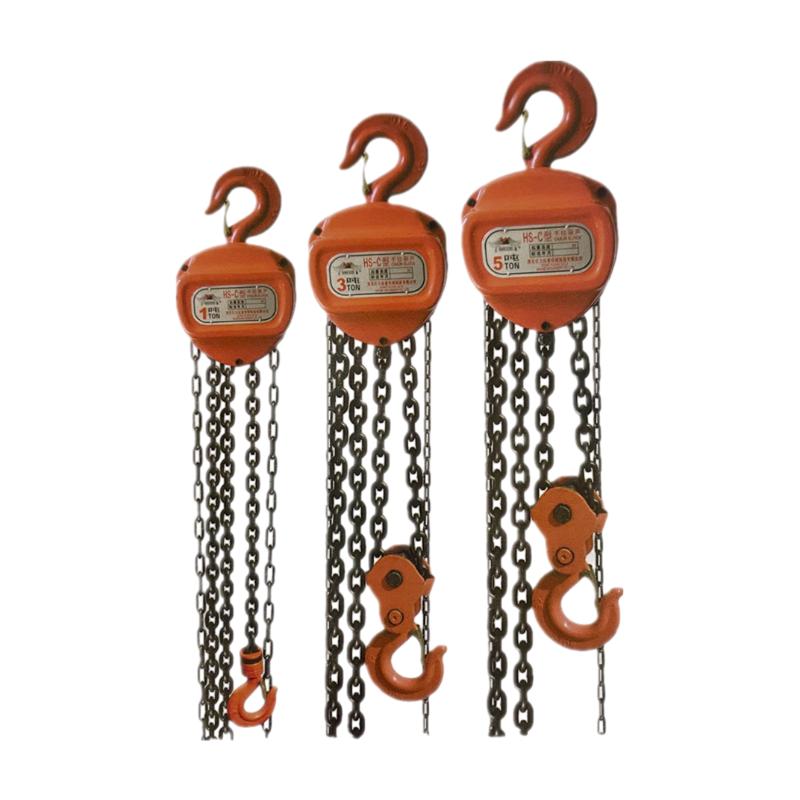

HSC chain block
product description
The HSC chain block is designed with safety in mind, using high-quality materials and exquisite craftsmanship to ensure that the product can operate stably under various working conditions. High-quality materials and exquisite craftsmanship are used in the manufacturing process of the HSC chain blocks. This allows the hoist to maintain stable performance and good operating condition during long-term use.
The HSC chain block has become a popular handling tool on the market. In modern construction, HSC series chain blocks play an increasingly important role, providing efficient handling solutions for various projects around the world.
main parameter
| Model | HSC-0.5 | HSC-1 | HSC-1.5 | HSC-2 | HSC-3 | HSC-5 | HSC-10 | HSC-20 | |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
| Standard lifting height(m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | |
| Tested load capacity(t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 25 | |
| Minimum distance between two hooks(mm) |
255 | 326 | 368 | 444 | 486 | 616 | 700 | 1000 | |
| Pulling force to lift full load(N) | 221 | 304 | 343 | 314 | 343 | 383 | 392 | 392 | |
| NO. of load chain | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
| Load chain diameter (mm) |
6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | |
| Net weight(kg) | 8 | 10 | 16 | 14 | 24 | 36 | 68 | 156 | |
| Gross Weight(kg)_ | 10 | 13 | 20 | 17 | 28 | 45 | 83 | 194 | |
| Packing measurement(L*W*H) (cm) |
28*21*17 | 30*24*18 | 34*29*19 | 33*25*19 | 38*30*20 | 45*35*24 | 62*50*28 | 70*45*75 | |
| Extra weight per meter of extra lifting height(kg) | 1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9.7 | 19.4 | |
product details
Dual braking system
The ratchet adopts a double braking structure to effectively control the lifting speed and ensure the safety of workers.
Alloy steel quenched gear
The wear resistance coefficient is increased to meet the needs of long-term overload and ensure the stable performance of the entire hoist.
Load-bearing chain
The chain is standard G80 manganese steel,which is thickened and quenched, making the hoist has strong pulling force and high safe.
Full material hand-pull chain
Galvanized hand-pull chain, makes it anti-corrosion and anti-rust.
Alloy steel guide wheel
The integrally formed guide wheel has deepened chain groove structure to prevent derailment, making it can smoothly guide the chain without jamming.
Humanized design hook
The hook is made of quenched manganese steel, with an embedded locking plate design that makes it difficult to unhook when pulled, and can be rotated 360 degrees.
