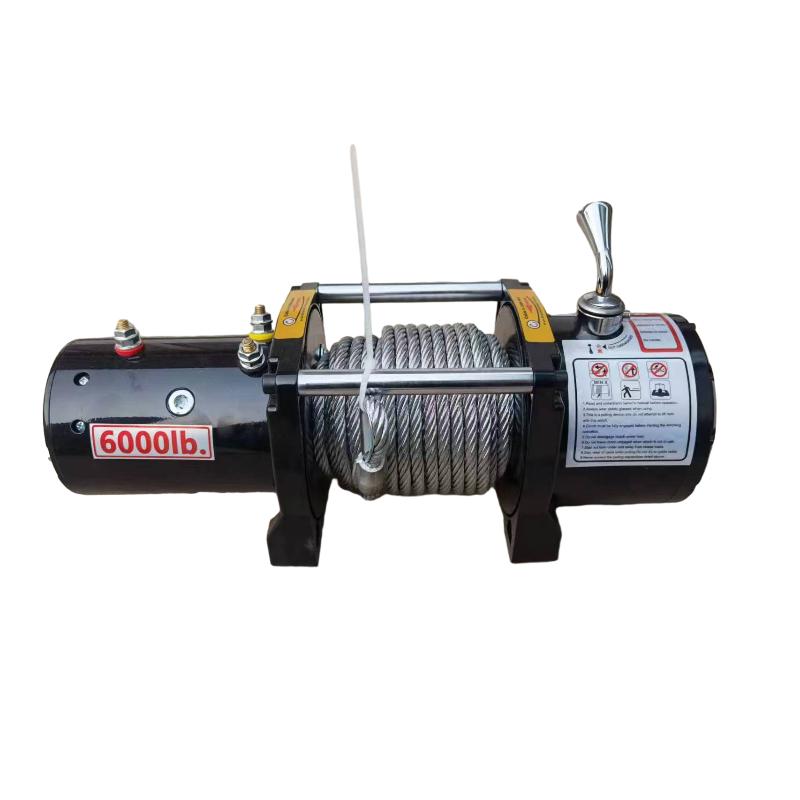

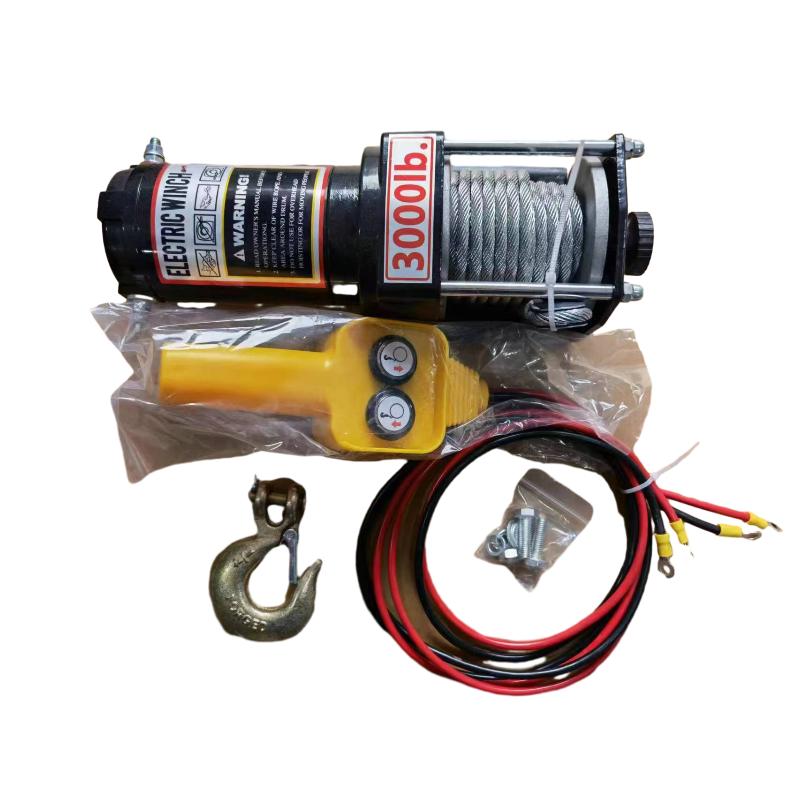

Electric winch
product description
The electric winch has the following characteristics in design and service:
1.Convenient,portable power for pulling boats,stuck vehicles and other heavy item.
2.Powerful 1500Ibs—4500lbs pulling power
3.12Volt powered for convenient use without extension cords or small gas engines.
4.Portable,with built-in carrying handle and quick-attach mounting plate.
5.Simple installation enables multi-position installation and quick switching of pulling directions.
6.Used with lifting straps, shackles, and pulleys to achieving single rope, double rope, or three rope pulling, achieving 2-3 times pulling force.
main parameter
| Model | 3000LBS | 3500LBS | 4000LBS | 4500LBS | 6000LBS | 12000LBS | 13500LBS |
| Rated line pull(single line)(LBS) | 3000 | 3500 | 4000 | 4500 | 6000 | 12000 | 13500 |
| Motor power(KW) | 1 | 1.1 | 1.2 | 1.4 | 3.1 | 4.5 | 4.5 |
| Cable diameter(mm) | 4.8 | 5.3 | 5.3 | 5.3 | 7.2 | 9.5 | 9.5 |
| Cable length(m) | 12 | 10 | 10 | 10 | 24 | 27 | 27 |
| Drum size(Dia×L)(mm) | 32*72 | 37*72 | 37*72 | 37*72 | 64*134 | 64*224 | 64*224 |
| Overall dimensions(L×W×H)(mm) | 310*105*106 | 316*120*106 | 316*120*106 | 316*120*106 | 440*160*218 | 552*160*218 | 552*160*218 |
| Weight(kg) | 7 | 8 | 8 | 9 | 24 | 34 | 34 |
| Packing size(cm)(2PCS) | 34*26*35 | 43*30.5*36 | 43*30.5*36 | 43*30.5*36 | 48.5*19.5*48.5(1pcs) | 61*19.5*48.5(1pcs) | 61*19.5*48.5(1pcs) |
product details
Nine gears transmission
high explosive force, strong load capacity, improved speed ratio, saving working time
Galvanized steel wire rope
anti-rotation, anti-corrosion, strong and durable, not easy to break
Copper core binding posts
good conductivity, low resistance and low heat generation
Thickened cable organizer
Forged from alloy steel and not easily deformed under heavy load-bearing conditions, allowing the wire rope to enter the winch regularly without getting stuck.
Waterproof control box and cover
good sealing, safer, can be used normally in heavy rain environments
Manganese steel hook
thickened material, integrated casting, strong load-bearing capacity
