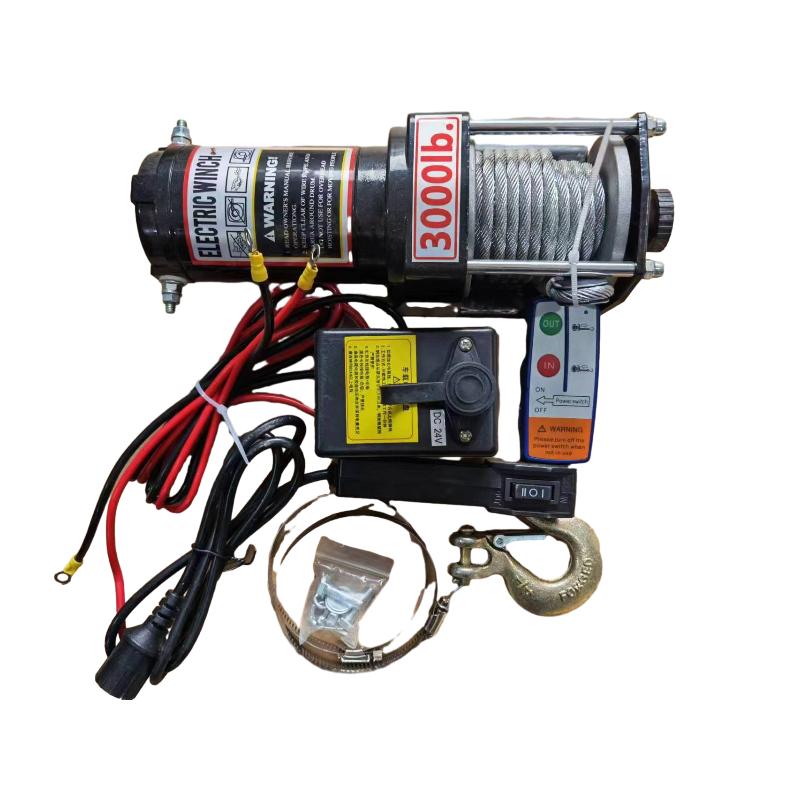

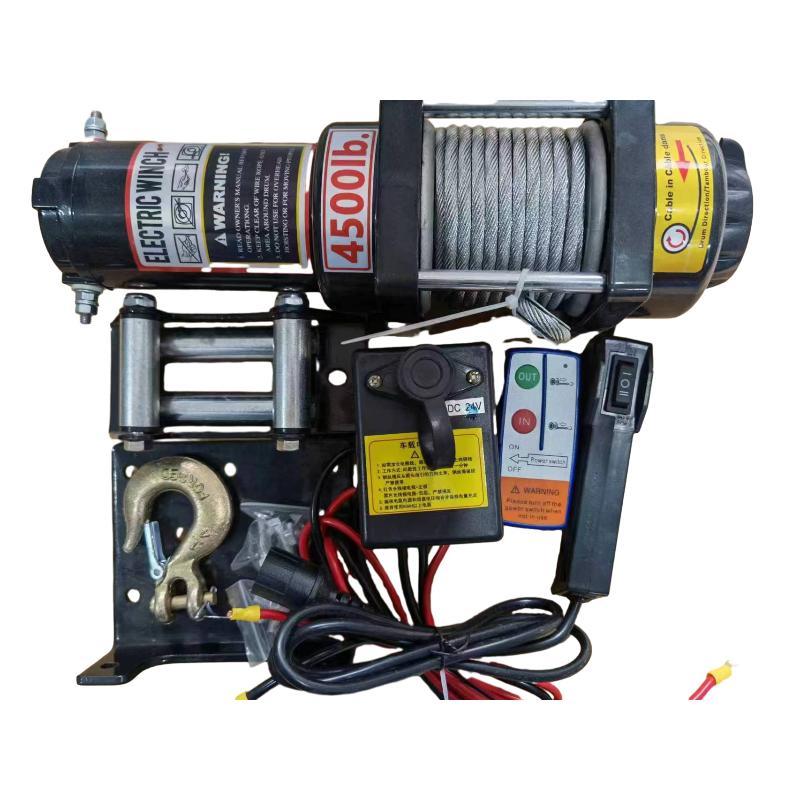

Electric winch with wireless remote control
Features
An electric winch with remote control is a very practical tools that can play an important role in many workplaces. Here are some of the advantages of an electric winch with remote control:
1. Efficiency: The electric winch with remote control is driven by electricity and can provide fast and efficient winch operation.
2. Safety: The electric winch is equipped with a remote control, allowing the operator to operate it away from the winch, avoiding possible safety risks caused by direct contact.
3. Flexibility: The electric winch with remote control is not limited by distance, and the operator can move freely within a certain range
4. Save manpower: The electric winch is driven by electricity, saving a lot of manpower and time.
main parameter
| Model | 3000LBS | 3500LBS | 4000LBS | 4500LBS | 6000LBS | 12000LBS | 13500LBS |
| Rated line pull(single line)(LBS) | 3000 | 3500 | 4000 | 4500 | 6000 | 12000 | 13500 |
| Motor power(KW) | 1 | 1.1 | 1.2 | 1.4 | 3.1 | 4.5 | 4.5 |
| Cable diameter(mm) | 4.8 | 5.3 | 5.3 | 5.3 | 7.2 | 9.5 | 9.5 |
| Cable length(m) | 12 | 10 | 10 | 10 | 24 | 27 | 27 |
| Drum size(Dia×L)(mm) | 32*72 | 37*72 | 37*72 | 37*72 | 64*134 | 64*224 | 64*224 |
| Overall dimensions(L×W×H)(mm) | 310*105*106 | 316*120*106 | 316*120*106 | 316*120*106 | 440*160*218 | 552*160*218 | 552*160*218 |
| Weight(kg) | 7 | 8 | 8 | 9 | 24 | 34 | 34 |
| Packing size(cm)(2PCS) | 34*26*35 | 43*30.5*36 | 43*30.5*36 | 43*30.5*36 | 48.5*19.5*48.5(1pcs) | 61*19.5*48.5(1pcs) | 61*19.5*48.5(1pcs) |
product details
Nine gears transmission
high explosive force, strong load capacity, improved speed ratio, saving working time
IP67 waterproof wireless remote control
available within a range of 30 meters, better sealing, waterproof and safer
Overload protection function
When the winch bears an excessive load, the power supply will be automatically cut off to protect the safety of the winch and the operator.
Permanent magnet copper core motor
The motor is made of super thick copper wire spiral winding method, the conduction performance is greatly improved, the power is powerful and direct, and the operation is stable
Automatically brakes when power is off
making work safer
Manganese steel hook
thickened material, integrated casting, strong load-bearing capacity
