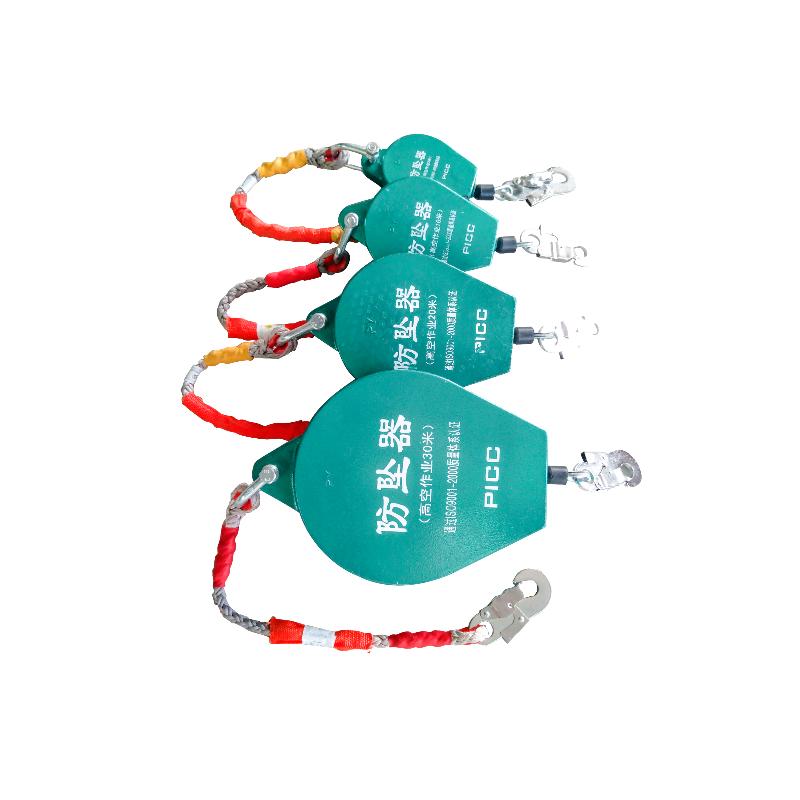

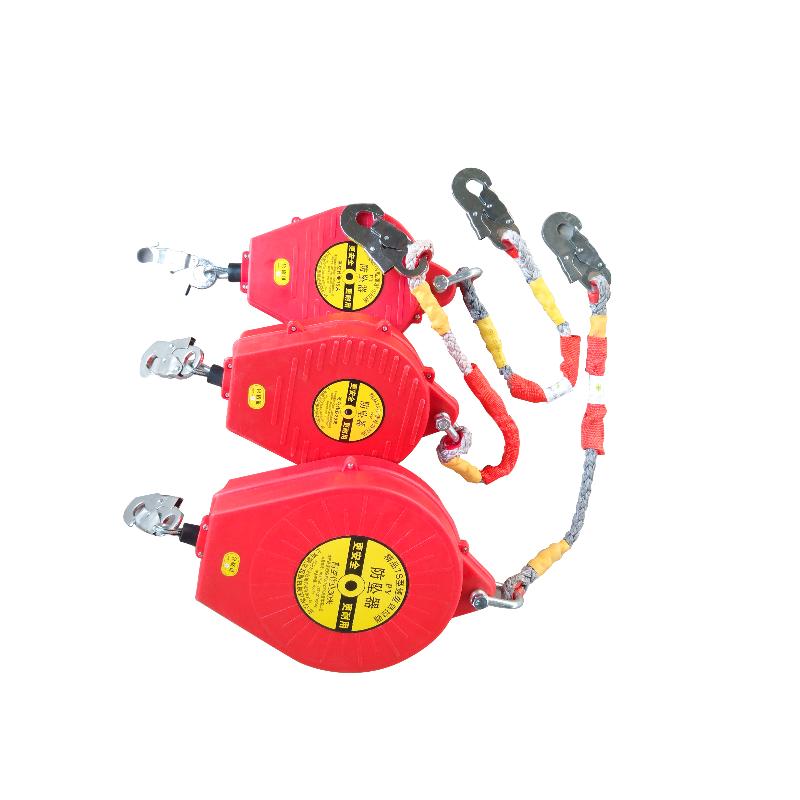

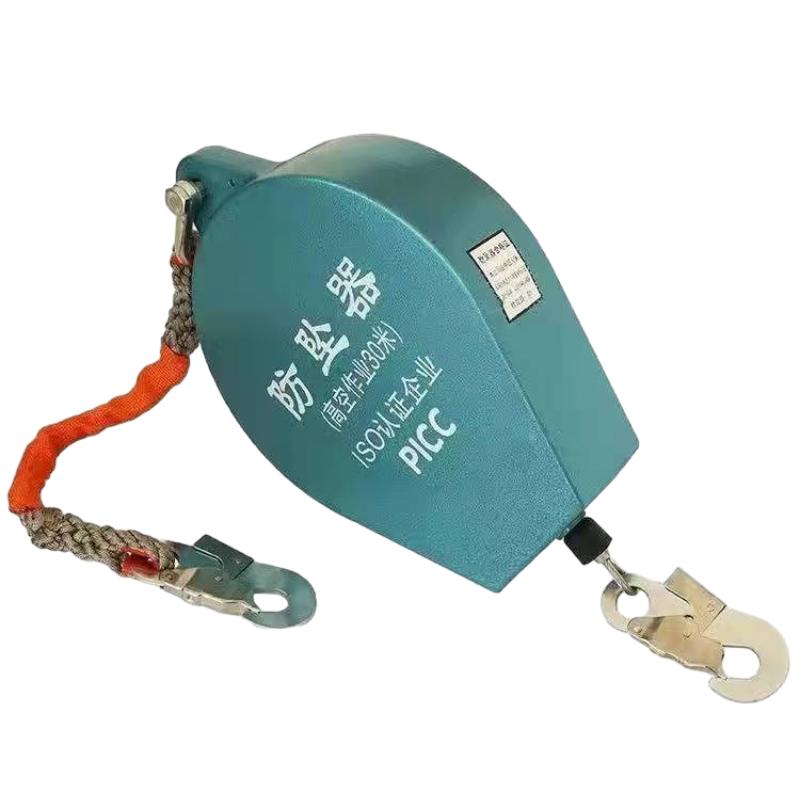

Anti Fall Arrester
product description
The anti-fall arrester is an essential safety device that is widely used in various industries, including power plant, construction site, mining, and shipping. Its main function is to protect workers from falling accidents, ensuring their safety and reducing the risk of workplace injuries. By investing in this device, businesses can ensure the safety of their workers while minimizing the risk of workplace injuries and maximizing the overall efficiency of their operations.
main parameter
| Model | TXS150-3 | TXS150-5 | TXS150-10 | TXS150-15 | TXS150-20 | TXS150-30 |
| Max working load(kg) | 150 | 150 | 150 | 150 | 150 | 150 |
| Cable material | galvanized steel wire rope | |||||
| Cover material | aluminum alloy | |||||
| Cable diameter(mm) | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 |
| Cable length(m) | 5 | 5 | 10 | 15 | 20 | 30 |
| Critical speed of locking(m/s) | 1 | |||||
| Locking distance | ≤0.2m | |||||
| Overall damage load | ≥8900N | |||||
| Service life(times) | 2×10^4 | |||||
Features
The anti fall arrester has these features as follows:
product details
Double locking system
Cast steel integrated ratchet
Quenched alloy steel spring
Aluminum alloy integrated cover
Galvanized steel wire rope
200°C high temperature resistant rope
Alloy steel U-shaped lifting ring
Self-locking hook
